Diesel Fuel Injection

Magdi K. Khair, Hannu Jääskeläinen

This is a preview of the paper, limited to some initial content. Full access requires DieselNet subscription.
Please log in to view the complete version of this paper.

Abstract: The purpose of the fuel injection system is to deliver fuel into the engine cylinders, while precisely controlling the injection timing, fuel atomization, and other parameters. The main types of injection systems include pump-line-nozzle, unit injector, and common rail. Modern injection systems reach very high injection pressures, and utilize sophisticated electronic control methods.

Basic Principles

Purpose of Fuel Injection System

The performance of diesel engines is heavily influenced by their injection system design. In fact, the most notable advances achieved in diesel engines resulted directly from superior fuel injection system designs. While the main purpose of the system is to deliver fuel to the cylinders of a diesel engine, it is how that fuel is delivered that makes the difference in engine performance, emissions, and noise characteristics.

Unlike its spark-ignited engine counterpart, the diesel fuel injection system delivers fuel under extremely high injection pressures. This implies that the system component designs and materials should be selected to withstand higher stresses in order to perform for extended durations that match the engine’s durability targets. Greater manufacturing precision and tight tolerances are also required for the system to function efficiently. In addition to expensive materials and manufacturing costs, diesel injection systems are characterized by more intricate control requirements. All these features add up to a system whose cost may represent as much as 30% of the total cost of the engine.

The main purpose of the fuel injection system is to deliver fuel into the cylinders of an engine. In order for the engine to effectively make use of this fuel:

  1. Fuel must be injected at the proper time, that is, the injection timing must be controlled and
  2. The correct amount of fuel must be delivered to meet power requirement, that is, injection metering must be controlled.

However, it is still not enough to deliver an accurately metered amount of fuel at the proper time to achieve good combustion. Additional aspects are critical to ensure proper fuel injection system performance including:

The primary purposes of the diesel fuel injection system are graphically represented in Figure 1.

[SVG image]

Figure 1. Main Functions of Diesel Fuel Injection System

Definition of Terms

Many specialized concepts and terms are used to describe the components and the operation of diesel fuel injection systems. Some of the more common of these include [922][2075]:

Nozzle refers to the part of the nozzle body/needle assembly which interfaces with the combustion chamber of the engine. Terms like P-Type, M-Type, or S-Type nozzle refer to standardized dimensions of nozzle parameters, as per ISO specifications.

Nozzle holder or injector body refers to the part the nozzle is mounted on. In conventional injection systems this part mainly served the nozzle mounting and nozzle needle spring preloading function. In common rail systems, it contains the main functional parts: the servo-hydraulic circuit and the hydraulic actuator (electromagnetic or piezoelectric).

Injector commonly refers to the nozzle holder and nozzle assembly.

Start of injection (SOI) or injection timing is the time at which injection of fuel into the combustion chamber begins. It is usually expressed in crank angle degrees (CAD) relative to TDC of the compression stroke. In some cases, it is important to differentiate between the indicated SOI and actual SOI. SOI is often indicated by an easily measured parameter such as the time that an electronic trigger is sent to the injector or a signal from a needle lift sensor that indicates when the injector needle valve starts to open. The point in the cycle where this occurs is the indicated SOI. Due to the mechanical response of the injector, there can be a delay between the indicated SOI and the actual SOI when fuel exits the injector nozzle into the combustion chamber. The difference between the actual SOI and indicated SOI is the injector lag.

Start of delivery. In some fuel systems, fuel injection is coordinated with the generation of high pressure. In such systems, the start of delivery is the time when the high pressure pump starts to deliver fuel to the injector. The difference between start of delivery and SOI is affected by the length of time it takes for a pressure wave to travel between the pump and injector and is influenced by the length of line between the high pressure pump and the injector and by the speed of sound in the fuel. The difference between the start of delivery and SOI can be referred to as injection delay.

End of injection (EOI) is the time in the cycle when fuel injection stops.

Injected fuel quantity is the amount of fuel delivered to an engine cylinder per power stroke. It is often expressed in mm3/stroke or mg/stroke.

Injection duration is the period of time during which fuel enters the combustion chamber from the injector. It is the difference between EOI and SOI and is related to injection quantity.

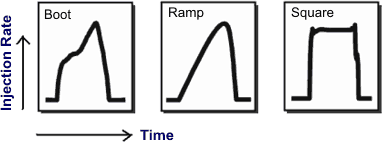

Injection pattern. The rate of injection of fuel often varies during the injection duration period. Figure 2 shows three common rate shapes: boot, ramp and square. Opening rate and closing rate refers to the gradients in the rate of injection during needle nozzle opening and closing events, respectively.

[chart]

Figure 2. Common injection rate shapes

Multiple injection events. While conventional fuel injection systems employ a single injection event for every engine cycle, newer systems can use multiple injection events. Figure 3 defines some of the common terms used to describe multiple injection events. It should be noted that the terminology is not always consistent. The main injection event provides the bulk of the fuel for the engine cycle. One or more injections before the main injection, pre-injections, provide a small amount of fuel before the main injection event. Pre-injections can also be referred to as pilot injection. Some refer to a pre-injection that occurs a relatively long time before the main injection as a pilot and one that occurs a relatively short time before the main injection as a pre-injection. Injections after the main injections, post-injections, can occur immediately after the main injection (close post-injection) or a relatively long time after the main injection (late post-injection). Post-injections are sometimes called after-injections. While there is considerable variation in terminology, a close post-injection will be referred to as a post-injection and a late post-injection as an after-injection.

[SVG image]

Figure 3. Multiple Injection Events

The term split injection is occasionally used to refer to multiple injection strategies where a main injection is split into two smaller injections of approximately equal size or into a smaller pre-injection followed by a main injection.

Unintended post-injections can occur in some fuel injection systems when the nozzle momentarily re-opens after closing. These are sometimes referred to as secondary injections.

Injection pressure is not used consistently in the literature. It may refer to the mean pressure in the hydraulic system for common rail systems, or to the maximum pressure during an injection (peak injection pressure) in conventional systems.

Basic Fuel System Components

Fuel Injection System Components

With a few exceptions, fuel systems can be broken down into two major component groups:

Fuel injection nozzles can be categorized as hole-type or throttling pintle type and as either a closed or open. Closed nozzles can be actuated hydraulically using a simple spring-biased mechanism or using servo control. Open nozzles as well as some newer closed nozzle injector designs can be directly actuated.

Metering of the injected fuel amount is commonly carried out in either the high pressure pump or the fuel injector. A number of different fuel metering approaches exist including: pressure metered at a constant time interval (PT), time metered at a constant pressure (TP) and time/stroke metered (TS).

Most fuel injection systems use electronics to control the opening and closing of the nozzle. Electrical signals are converted into mechanical forces using some type of actuator. Commonly, these actuators can be either electromagnetic solenoids or active materials such a piezoelectric ceramics.

Basic fuel injection system components are discussed in a separate paper.

###
